ZPW-23 Three Layer Press Machine

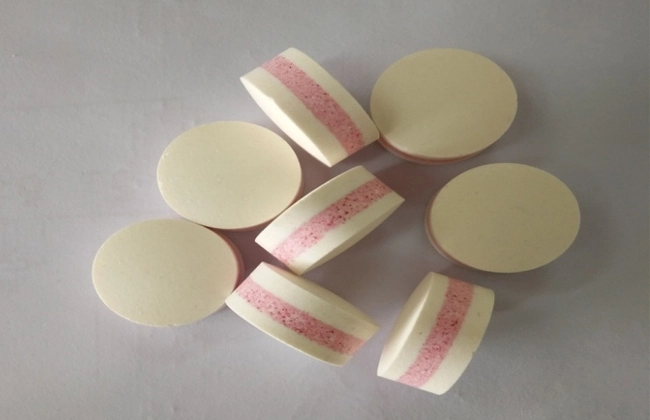

Based on ZPW23 Rotary tablet press machine, our factory improved it. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.


Features:


1.Machine meets GMP and made in stainless steel. The inner tablet press surface has been special treated, which could keep surface luster and avoid cross contamination.

2.Equipped with transparent window which could help to observe the status of pressing tablets. Transparent window could be fully opened, easy to clean and maintain.

3.Machine speed could be adjusted.

4.Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.

5.Transmitting system is sealed in the oil box under the main machine, which works separately. No pollution and easy to send out heat and resist grinding.

6.Machine equipped with suction machine which could absorb the powder of working area.


Technical parameter:


Dies (sets)

23

Max. Pressure (KN)

100

Max. dia. of tablet (mm)

40

Max. Thickness of largest tablet (mm)

14

Max. Depth of fill (mm)

25

Max. production capacity(pcs/h)

34500

(15,000-20,000)

It depends on the size of the tablet

Rotational diameter(mm)

445

Rotational speed of revolving table(r/min)

10-25

Diameter of middle mould (mm)

52

Highness of middle mould(mm)

34+4

Diameter of up and low punch pole (mm)

42

Length of the upper punch pole (mm)

180

Length of the lower punch pole(mm)

180

Overall dimensions(mm)

1000*1250*1900

Net Weight (kg)

3200

Motor model

YU132M4A

Motor(KW)

7.5

Voltage(V)

380


ZPW-23 Tablet Press Electric Principle Diagram and Components List


No

Description

Manufacturer

1

Motor

ABB

2

Feeder Motor

HAIBIN

3

Frequency converter

INVT

5

Display

SIEMENS

6

PLC

SIEMENS

7

Connection

SIEMENS

8

Terminal

HENGTONG

9

Motor Circuit Breaker

SCHNEIDER

10

Contactor

SCHNEIDER

11

Intermediate relay

OMRON
