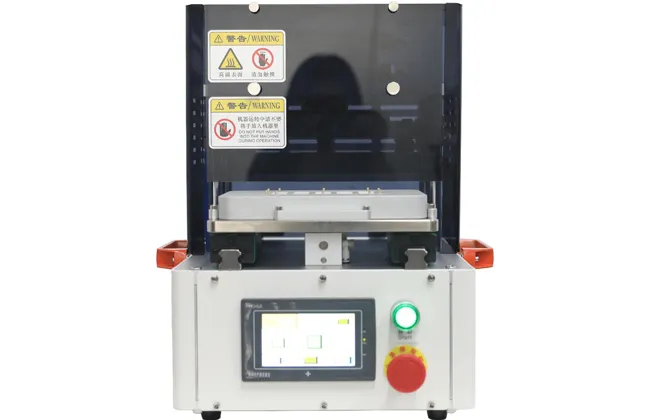

The sealing machine is an aluminum plastic blister / aluminum blister sealing equipment developed for prefabricated blisters made of PVC / PET and prefabricated sealing materials.
Small model, table operation and small floor area. Push button, easy to operate.
It is suitable for self-service sealing of supporting stores, research and development of small laboratories, school teaching and small production.
1. Simple operation panel;
2. Easy to use, sealed by cylinder, without manual pressing;
3. High quality electric heating rod is adopted, with long service life;
4. Intelligent temperature controller is adopted to accurately control the temperature;
5. The pressure is sufficient, the finished product is well sealed, and the storage time of the capsule or tablet in it is prolonged;
6. Small size, easy to move. Stainless steel and aluminum alloy materials and lightweight handle are adopted for easy movement;
7. Protective cover to prevent injury during operation;
8. It is easy to replace the mold without dismantling parts.
Model | SINOTECHLF-II |
Voltage | 220V/50Hz |
Rated power | 1.5KW |
Speed | 4-10 Times / min |
Maximum sealing size | 210*130*30mm（L*W*H） |
Heating temperature | 40-200° |
Air pressure / gas consumption | 0.6-0.8MPa 0.12m³/min |
Overall dimension | 450*480*540mm（L*W*H） |
Weight | 45 Kg |
