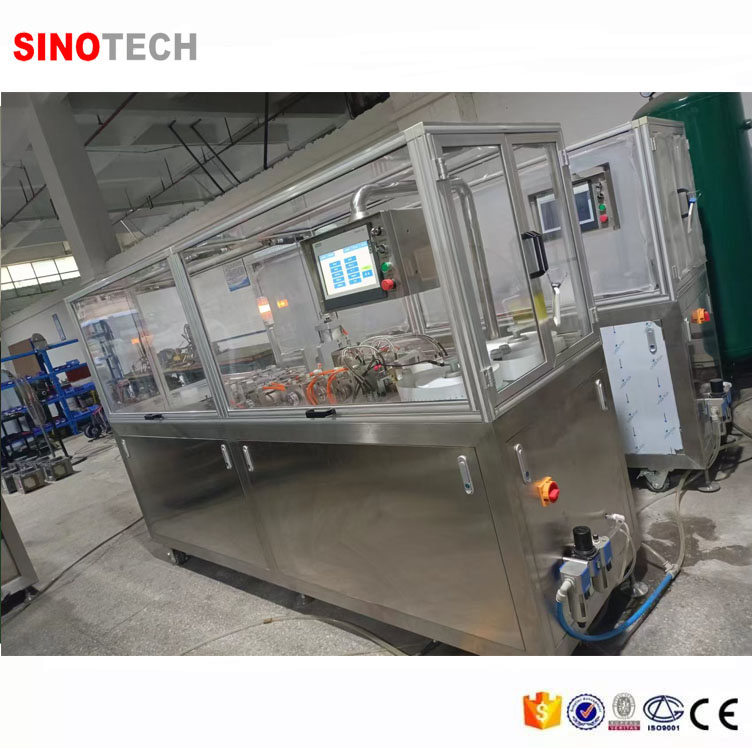

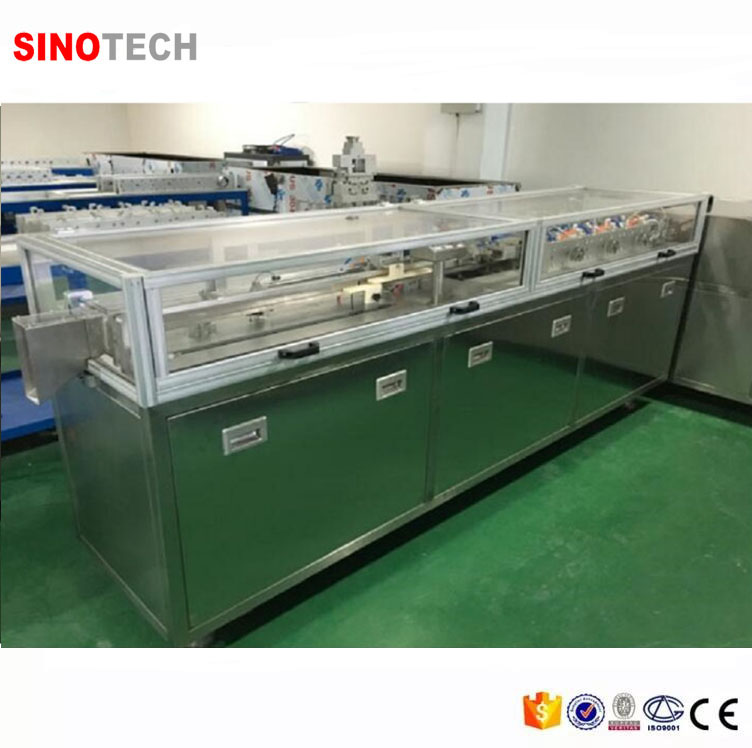

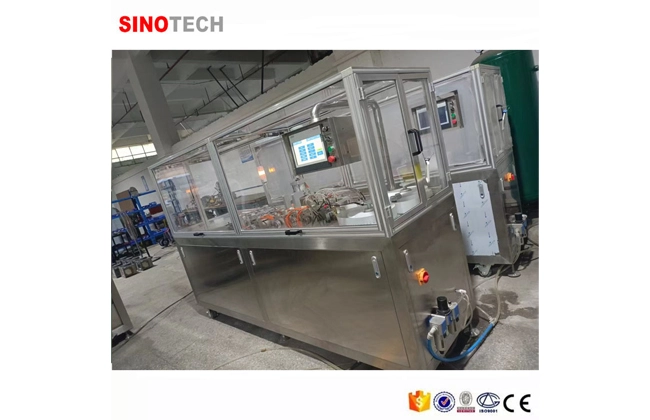

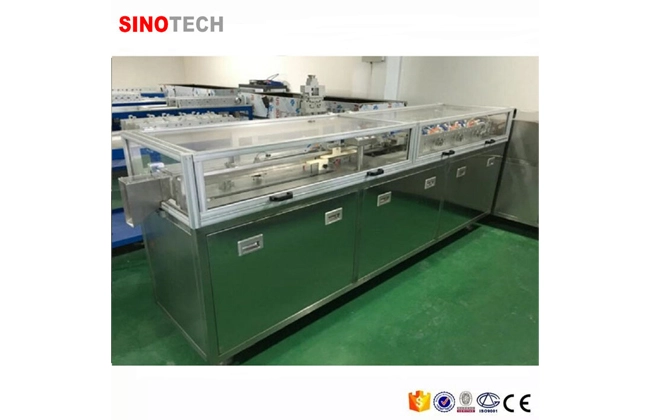

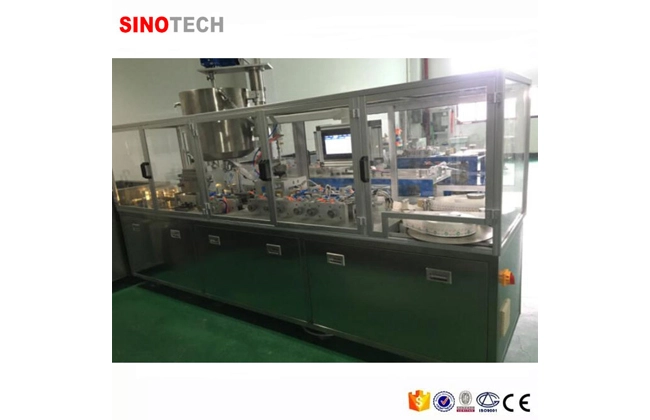

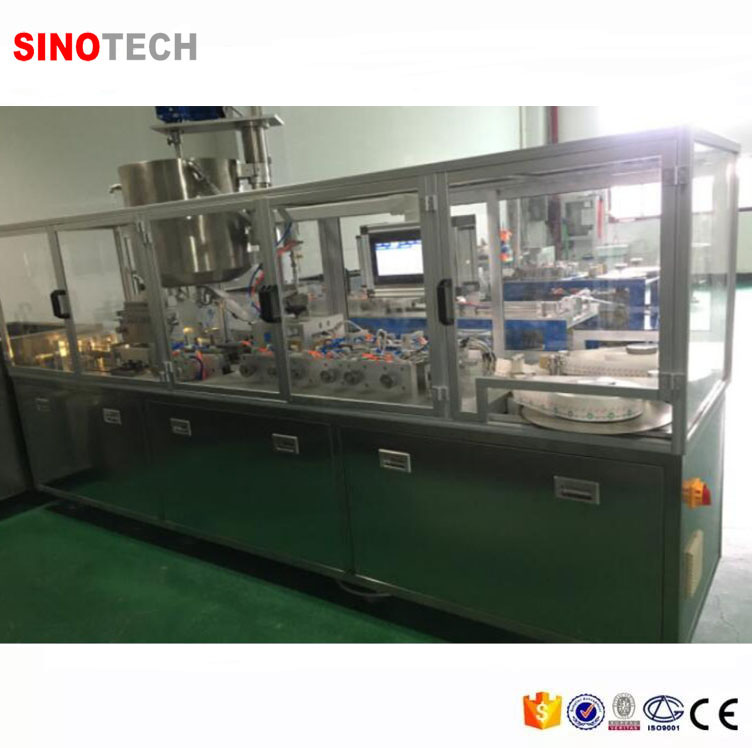

Suppository making shell machine for sale

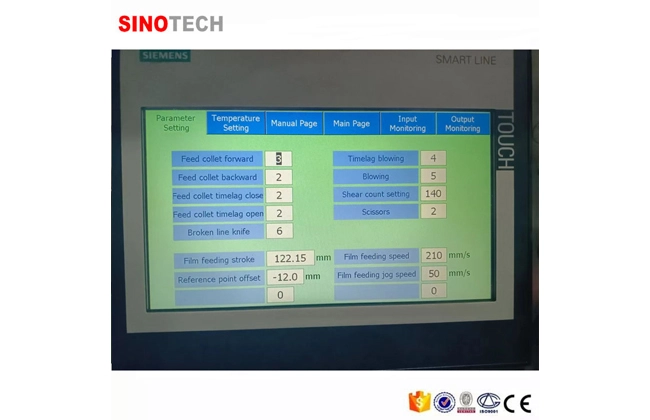

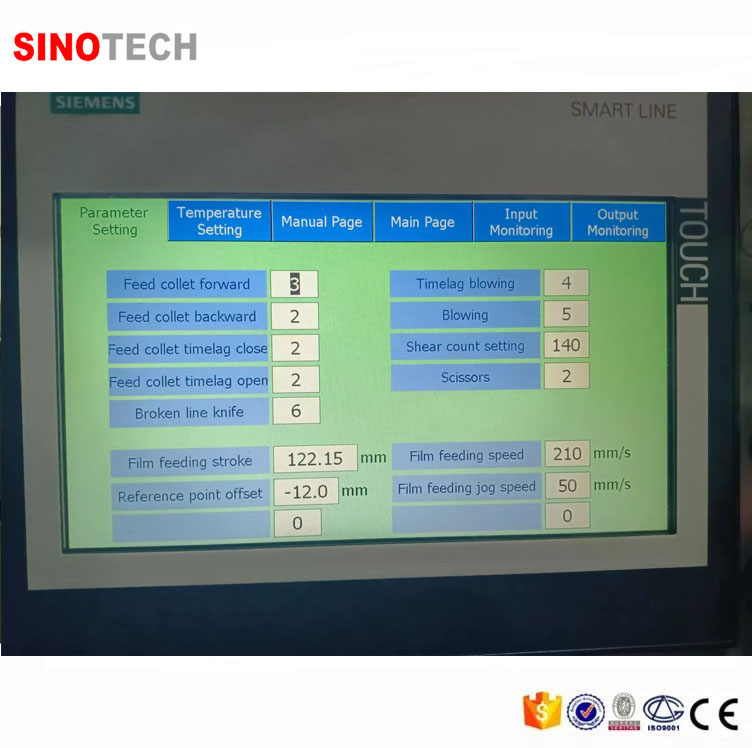

Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet  head,  torpedo shape  bill,  to meet  the  production  of your  suppository. (according to the specifications of  your   specifications)The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation. The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.  Simple and reasonable design, convenient operation and maintenance.



Working principle :

Suppositories molding machine and the production capacity is 6,000-9,000 grain/hour.It will be rolled into the forming area by the clamping mechanism. The mold will be heated by the preheating mold, the mold, the mold, the blow mold and the bubble forming.The triangle knife will be cutting suppository top edge (cutting edge).


Features:

1.automatic suppository forming machine is welded flat, with no edge, slag and splash.

2.The whole machine is treated with reliable rust. The surface of the equipment is 304 stainless steel. It is smooth and easy to clean.

3.Components, accessories and motors and so on should adopt domestic and foreign premium brands.

4.Ensure the appearance of the equipment and smooth operation.


Technical parameter:

Capacity6000-9000shells /hour
single dosage0.5—5ml

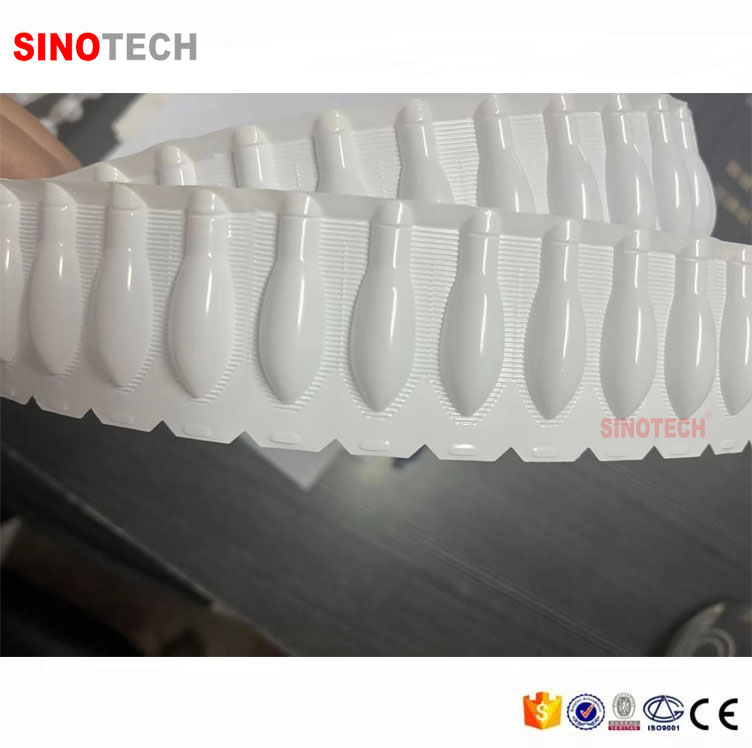

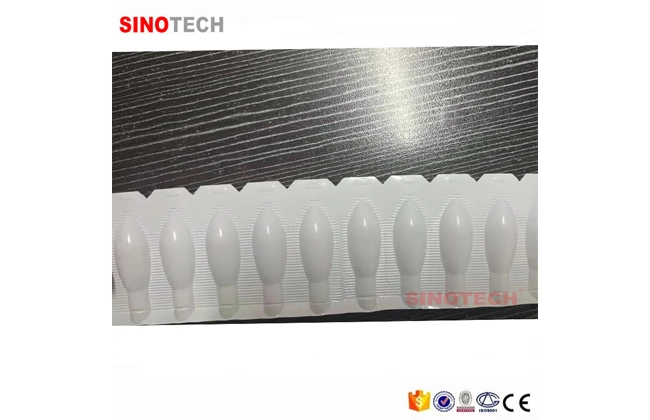

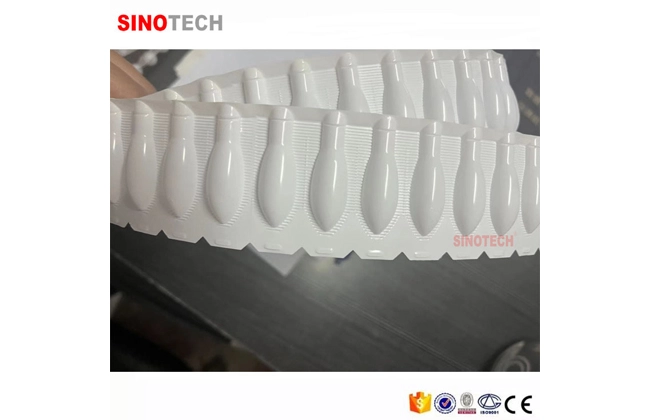

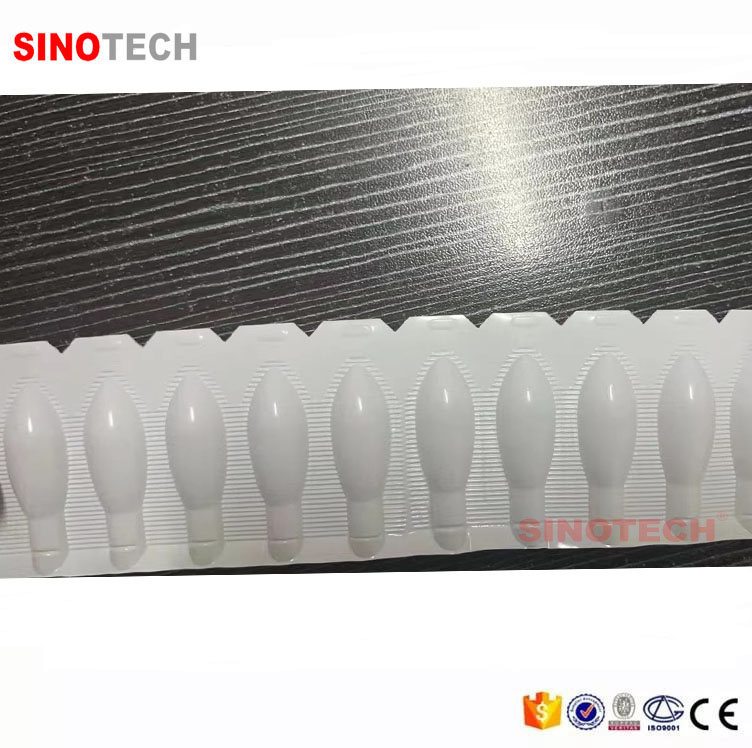

Adopt forming shapesBullet head type, torpedo type, duck beak type and other shapes
Air pressure0.6Mpa
Air consumption/min1.5m3
Water consumption/h50kg (recycling)
Voltage220v 3p 50hz
total power3KW
Overall dimensions2750*1250*1380mm
Machine Weight500kg


Configuration list:


Configuration list

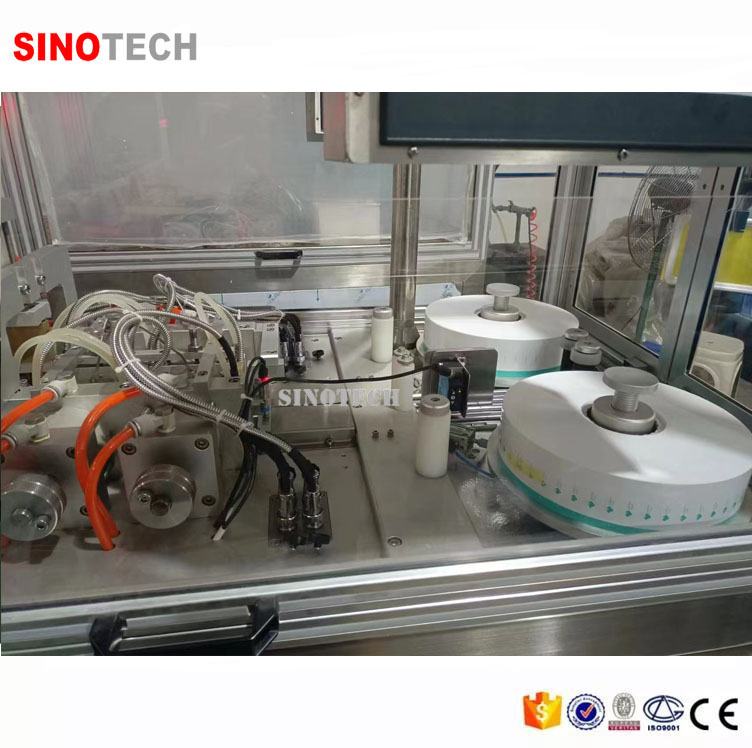

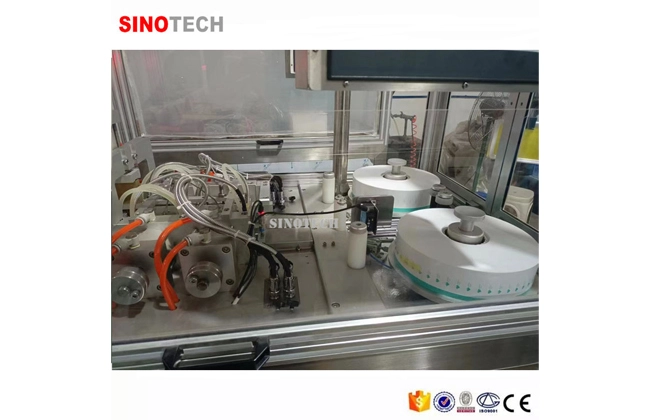

Forming
part
Put film plate(supporting the brake cylinder 2 pcs)

Pneumatic components brand:AirTAC

Cylinder stable operation, the use of Imported seals, run lasting wear.

Reticle clear and easy to tear.

Triangular knife durable and reliable.

Film-oriented device
Forming mold ( 1set)
Sandwich film running device
(supporting cylinder 1pc)
Forming device (supporting cylinders 1pairs)
Blowing device ((1 pressure
regulating valve))
Forming part box body(content internal frame)material:aluminum 、stainless steel
Organic glass coverMade in our manufacture
Three  corners, virtual line easy to tear cutTriangular dotted line knife (1 pair of supporting cylinders)Brand of pneumatic components:
Taiwan Yadeke
Electrical
configuration
Programmable controllerMitsubishi
PLCDelta
Frequency converterMitsubishi
Low voltage electrical apparatuschint
temperature controllerYudian
Solenoid valve air source treatmentTaiwan Yadeke
Photoelectric switch / proximity switch / limit switchOMRON /Feihong / Xinou
Alarm deviceMade in our manufacture
