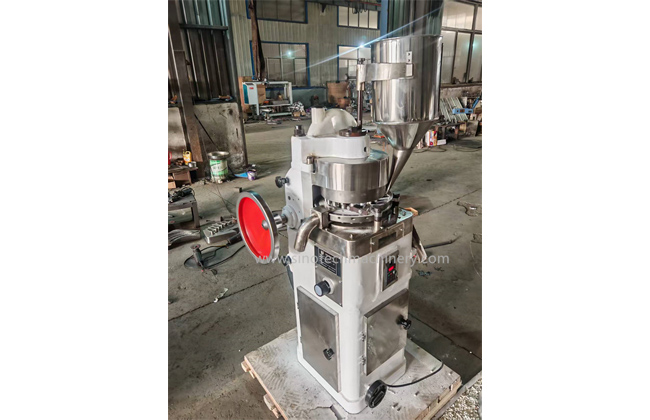

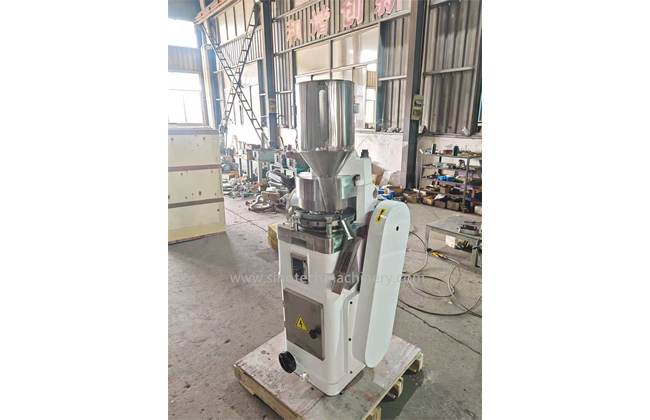

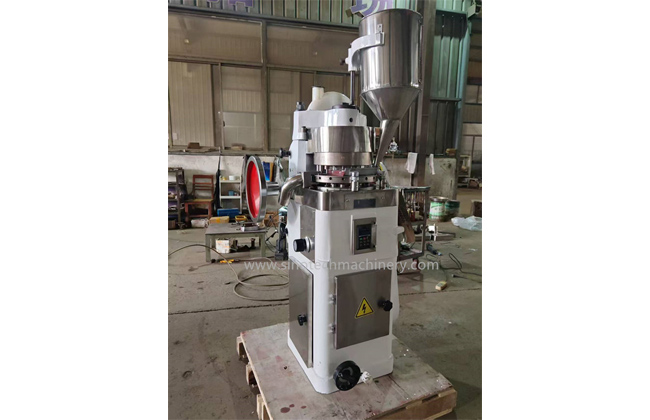

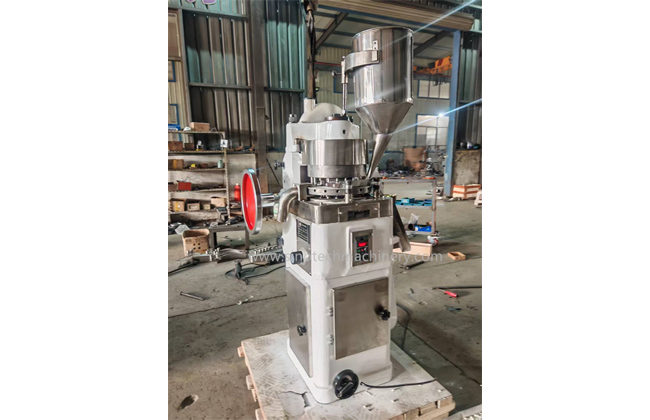

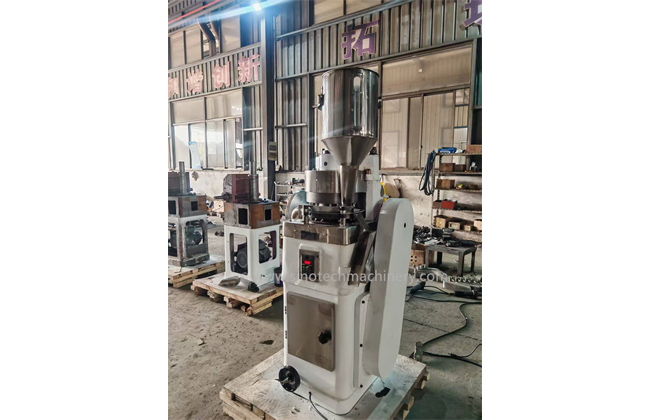

This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
This machine is used to press various granular raw materials into round tablets, which is most suitable for small batch production. The utility model is characterized in that 15-19 punching dies can be installed on the mounting plate, and 15-19 pieces can be pressed by rotating one circle. The rotary table speed and the filling depth of materials can be adjusted. The mechanical buffer device on the machine can avoid the damage of parts caused by overload. One side of the machine body is equipped with a powder suction box. The dust generated during the operation of the machine can be absorbed through the suction nozzle to avoid sticking and blocking.
Model | ZP-15 | ZP-17 | ZP-19 |
Punch quantity（Sets） | 15 | 17 | 19 |
Max.tablet pressure(kn) | 60 | 60 | 60 |
Max.tablet diameter(mm) | 25 | 21.8 | 20 |
Max.filling depth(mm) | 15 | 15 | 15 |
Max.tablet thickness(mm) | 6 | 6 | 6 |
Turret rotary speed(r/min) | 22-35 | 22-35 | 22-35 |
Production capacity(PC/h) | 31500 | 35700 | 39900 |
Motor power(kw) | 2.2 | 2.2 | 2.2 |
Overall size(mm) | 760×750×1550 | 760×750×1550 | 760×750×1550 |
Machine weight(kg) | 520 | 520 | 520 |
