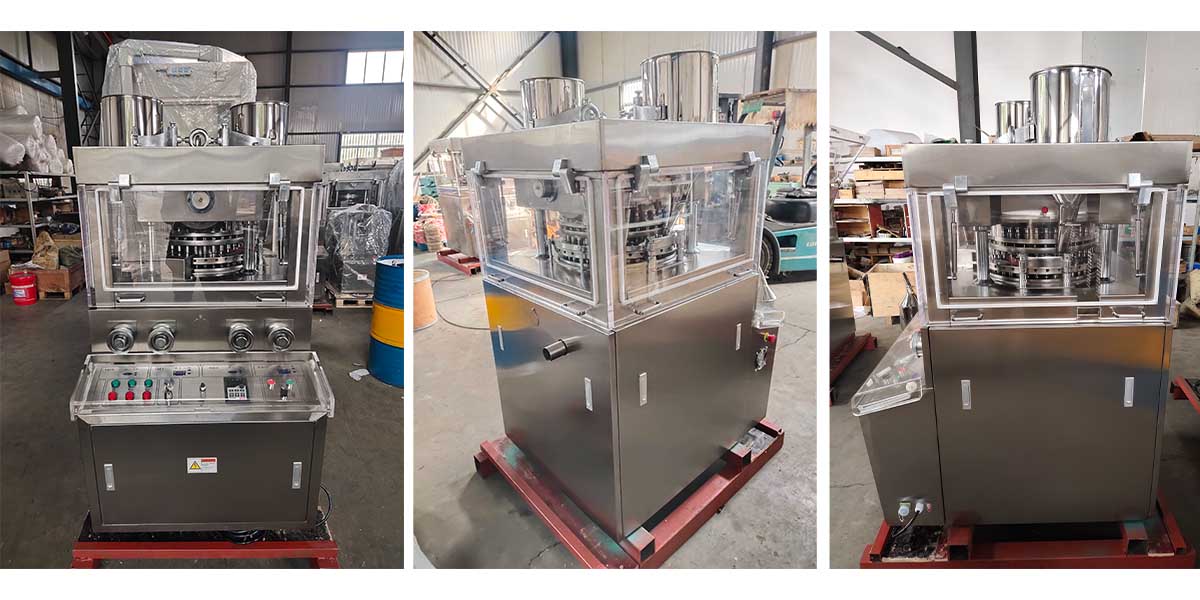

ZP-45D Rotary Tablet Press

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .


Specification of ZP-45D Rotary Tablet Press


Type

ZP-45D

Dies (sets)

45

Max. Pressure (kn)

80

Max. dia. of tablet (mm)

13

Max. Depth of fill (mm)

15

Thickness of largest tablet (mm)

6

Turret speed (r/min)

30

Production capacity (pc/h)

162000

Motor (kw)

4

Overall dimensions(mm)

980*1240*1690

Net weight (kg)

1850



Configuration List


Name

Type

Manufacturer

Motor power

4kw-6poles

Shanghai Dedong

Transducer

P/N 132F0026

Danfoss

Cocontactor

3TB4322-OX 220V

Siemens

Contactor

3TB4022-OX 220V

Siemens

Relay

MK2P-1/AC220V

Omron

Relay

MK2P-1/DC24V

Omron

Thermorelay

JR36B-20

Siemens

Magnetic Ballast for Fluorescent Lamp

BPL9W220VB2SC

Phillips

Little Triphase Breaker

5SJ63

Siemens

Emergency Stop Button

AR22V2R-11R

Fuji

Key Switch

AR22JR-3A11A

Fuji

Indicator Light

DR22E3L-E4G

Fuji

Travel Switch

LX19-001

Shanghai Huatong

Fan

FK3321.100

Shanghai Leipu Electric

Control Button

AR22PR-210B

Shanghai Huatong

Register

In accordance with appliance eg:40:1×30

Shanghai Handwheel Revolution

Rattle Ware

DR22BS-220V

Fuji

Switch

HGS-25-24

Shanghai Hengji

Screw Fuse Porcelain Base

RL1-15

Shanghai Huatong



Main Component Materials List


No.

Component Name

Material

Manufacturing Accuracy

1

Upper and lower punch disks

QT500-7


2

Upper and lower punch dies

QT500-7


3

Middle die

QT500-7


4

Upper guide rail disk

GCr15SiMn

Curve surface roughness Ra≥1.6

5

Upper and lower pressing wheels

GCr15SiMn

Level-6 accuracy

6

Main shaft

40Cr

Level-6 bearing part

7

Main transmission worm

40Cr

Level-6 accuracy

8

Main transmission worm gear

Tin bronze 10-1

Level-6 accuracy

9

Feed impeller

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6

10

Feed base plate

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6

11

Impeller I

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6

12

Impeller II

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6

13

Guider

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6

14

Feed cylinder

1Cr18Ni9Ti

Curve surface roughness Ra≥1.6




Operating principle of ZP-45D Rotary Tablet Press


1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
10. Easily-damaging components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
11. Mould is similar generally with ZP19, ZP33, ZP35 and ZP37 Piece-pressing machine.
