Full Automatic Suppository Filling and Sealing Machine with 1Filling Head

Process flow

It will be rolled into the forming area by the clamping mechanism. The mold will be heated by the preheating mold, the mold, the mold, the blow mold and the bubble forming.

Filling

And one-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric heating insulation system, the top is equipped with a uniform mixing machine in order to make drugs, drug by high precision in VAT filling pump into the filling head, a drug through the other end of the cycle to rest after filling material barrel filling again next time.

Cooling design

The suppository of the whole drainage is entered into the cooling box, and the cooling box is equipped with a cold water unit.

Shearing

After being cooled, the solid suppository enters the sealing zone: preheating mold (preheating), sealing  mould  (seal),  marking  mould  (batch  number),  The  triangle   knife  will   be  cutting suppository top edge (cutting edge) ，hob (top), counting shear.

Function description

• SJ-1LS  Full-automatic  Suppository  Production  Line  is  suitable for the  production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications)

• The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.

• The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

• The  liquid  storage  tank  is  made  of  316L stainless  steel, with  proper  volume,  heat preservation and heating function, and accurate temperature control;

• The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.

• The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-3.5ml and the filling error is plus or minus 2%.

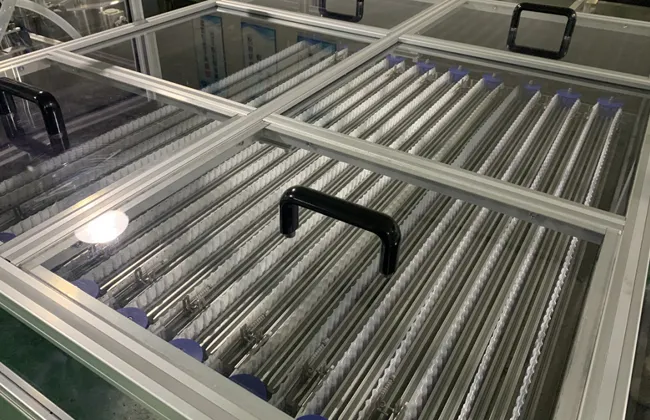

• Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.

• Continuous strip, continuous sealing, sealing process batch number self-printing; The sealing seal should be well sealed.

• Simple and reasonable design, convenient operation and maintenance.

Manufacturing Principle

SJ-1LS automatic suppository filling production line is welded flat, with no edge, slag and splash.

The whole machine is treated with reliable rust. The surface of the equipment is 304 stainless steel. It is smooth and easy to clean.

Parts, accessories, motors, etc. should adopt high-quality domestic and foreign brands.

Ensure the appearance of the equipment and smooth operation.

Safety of Equipment

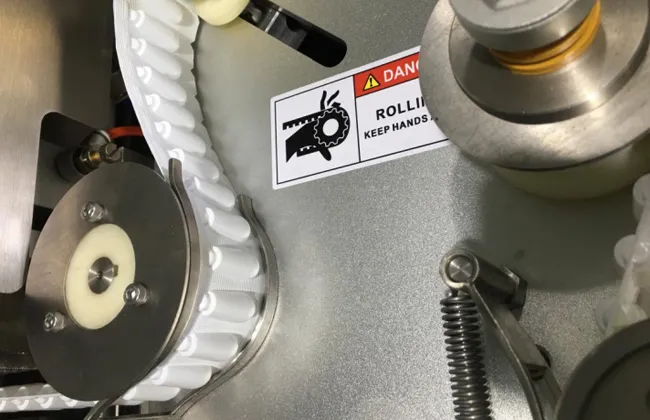

The machine has sufficient safety equipment to guarantee that operators will not be harmed in the operation.

Advantage of Equipment

High Accuracy of Filling

The injection pump body is processed by special process, so that the sealing performance between the piston and the pump body is better, and the infusion volume is more accurate. The dosages can be fine-tuned.

Combination structure of triangle knife and dot line knife

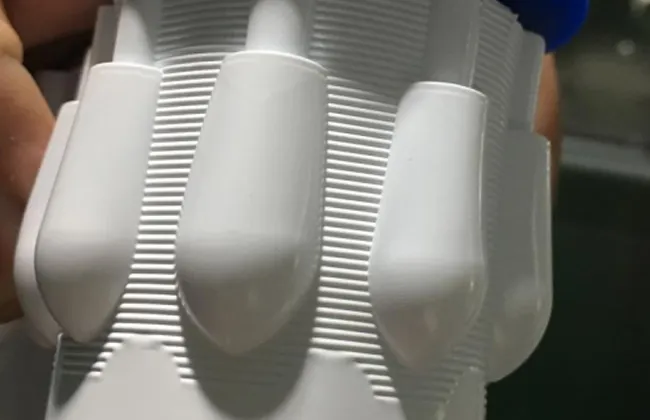

Make the both of triangle and the dotted line knives completely coincide, make the bolted shell achieve the easy tear effect.

Filling parts without sticking material on the pump

The equipment filling pump has high precision, good sealing effect, smooth inner wall and good stability, so as to achieve the long-term operation without hanging wall phenomenon.

Stirring tank speed adjusting system

Because of the different viscosity of the drug matrix, the mixing effect cannot be fixed and the drug can be mixed before the filling, which can affect the drug content of the finished product.

Fractional cooling system

The cooling system adopts the latest grading cooling technology, which can be cooled and solved the phenomeno n of the edge of cooled material drops and fracture when the medicine is tearing apart.

PLC Examine system

The on-line monitoring function of PLC can be used to detect and alarm the fault self-check.

Filling parts equipped with anti-static system

Note: by filling parts molding shell before if not including the equipment because of trace drug when filling in the flowing area close to the bolt shell under the action of electrostatic force along the shell wall climbing a short level which could reach the sealing parts of the bolt, thus will affect the back of the sealing quality.

Filling parts without sticking material on the pump

The equipment has high precision and good stability, so it can run without wall for a long time.

Easy operation

Control station height reasonable design, machine operation is simple.

Parameters list of SJ-1LS

Configuration list of SJ-1LS

Electric-control parts configuration list

* Supplier has the right to update the configuration without prior notice.

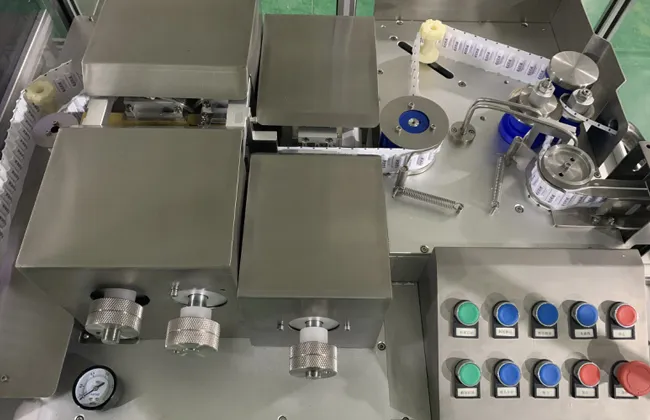

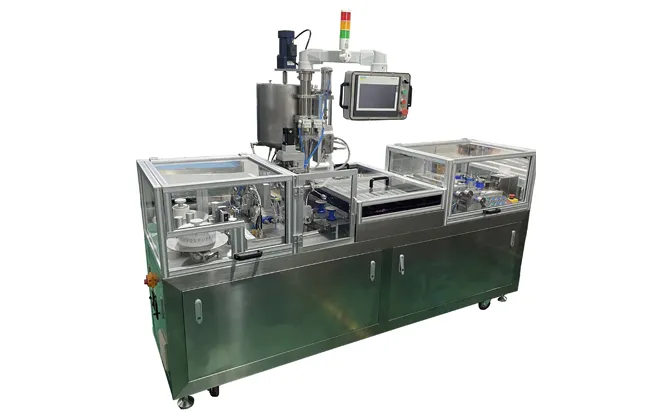

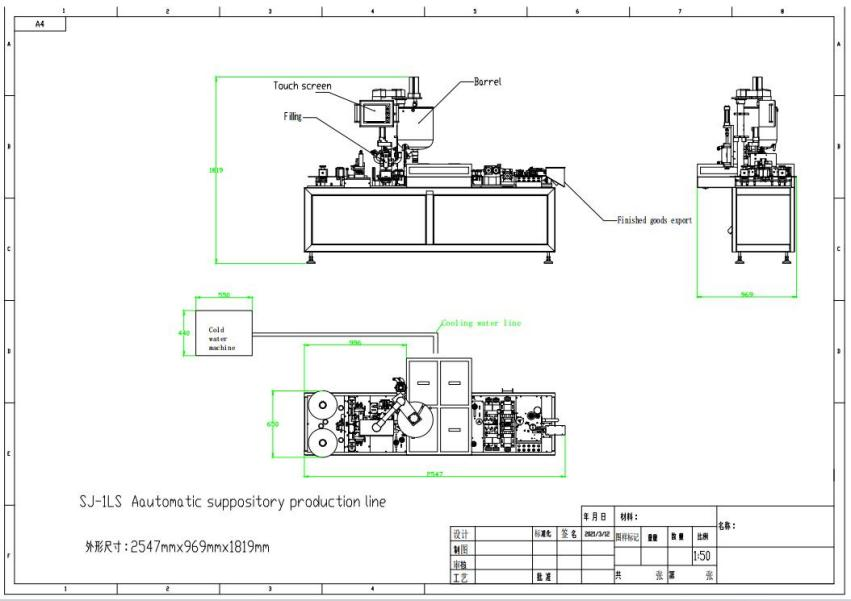

Equipment pictures and details

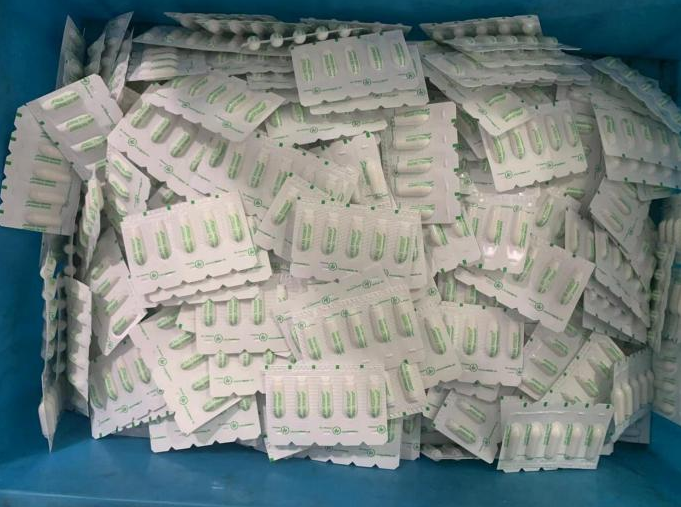

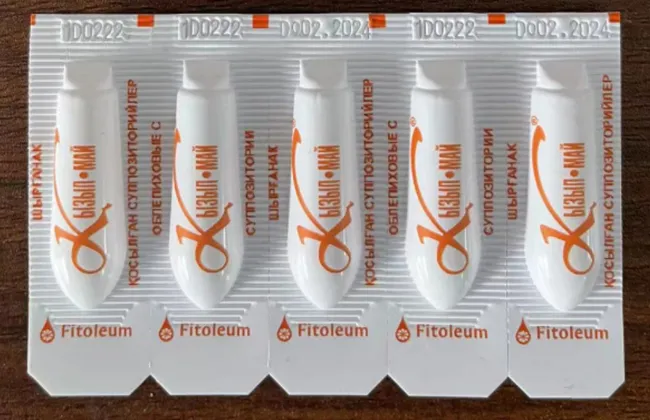

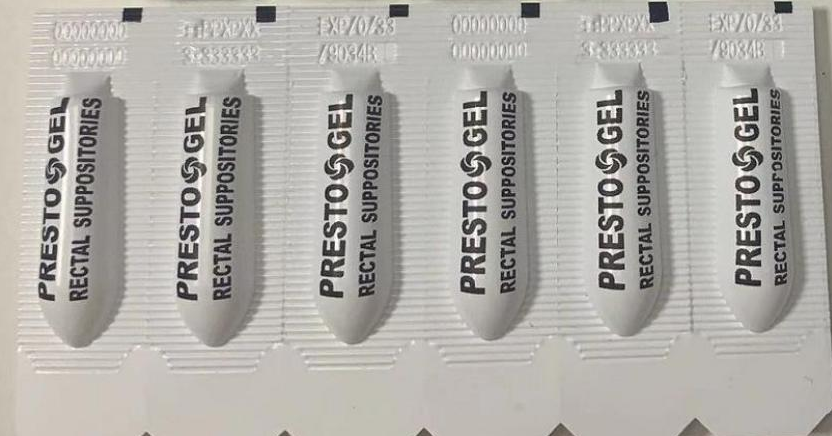

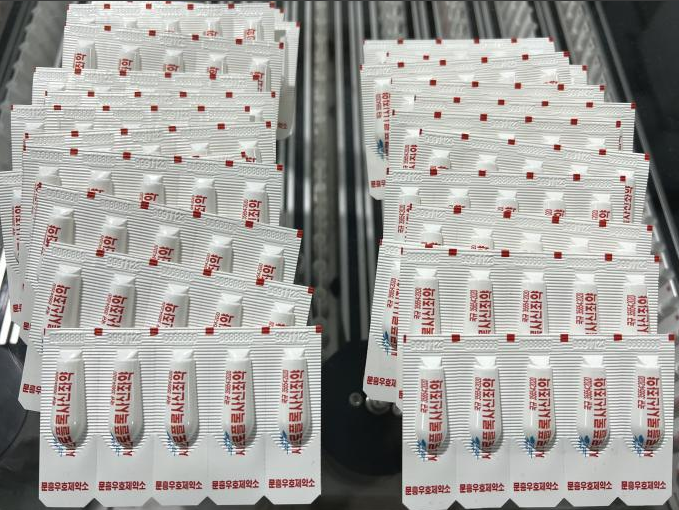

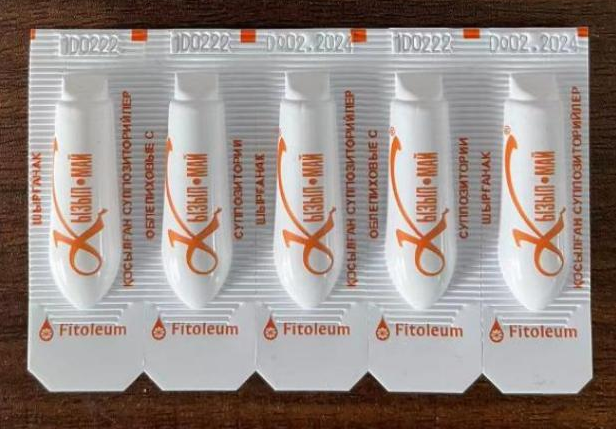

sample
