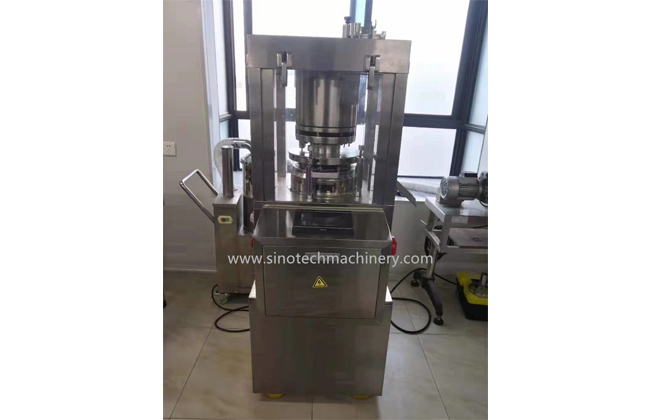

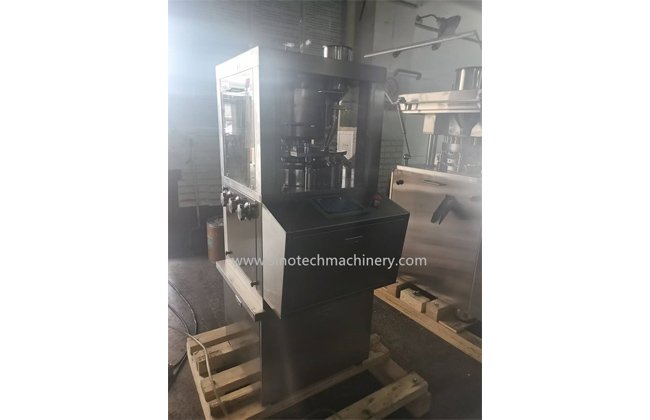

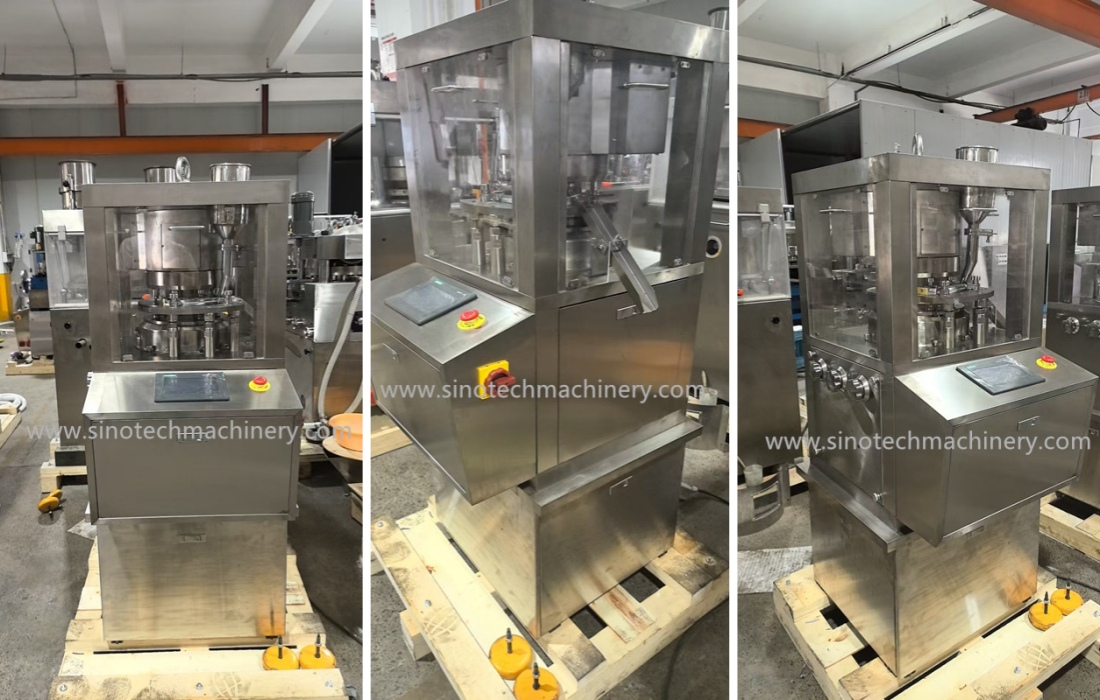

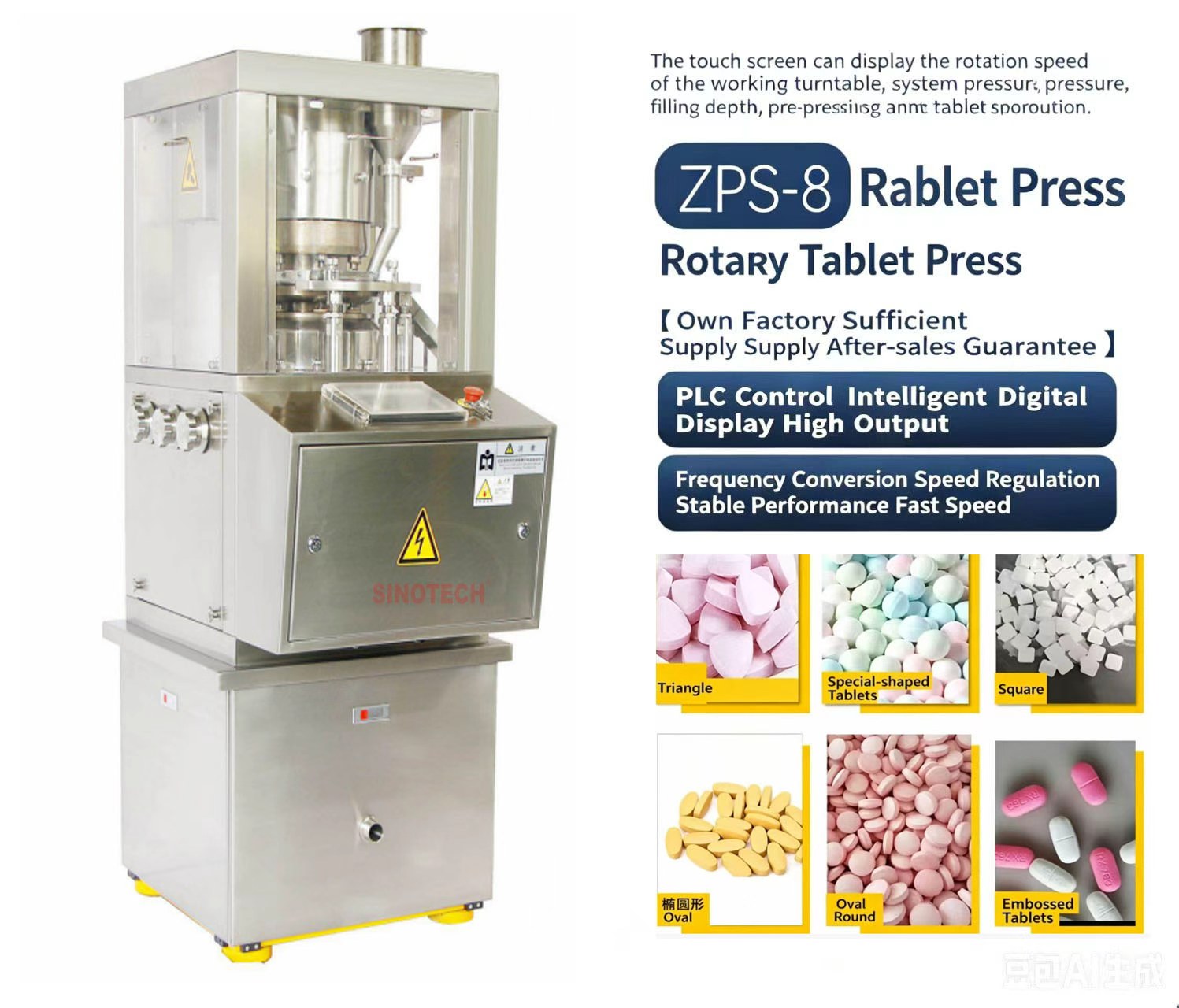

1. Single pressure, fully enclosed structure, in compliance with GMP requirements
2. Set pre pressure and main pressure device
3. Spindle drive, variable frequency speed regulation
4. Choose advanced worm gear reducers to match

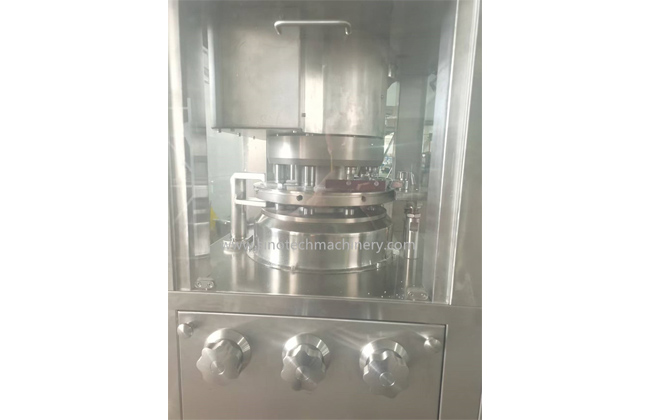

5. The turntable is equipped with thrust bearings and self-lubricating bearings

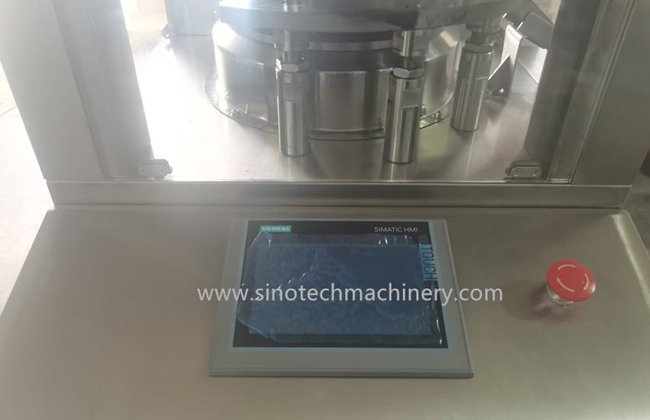

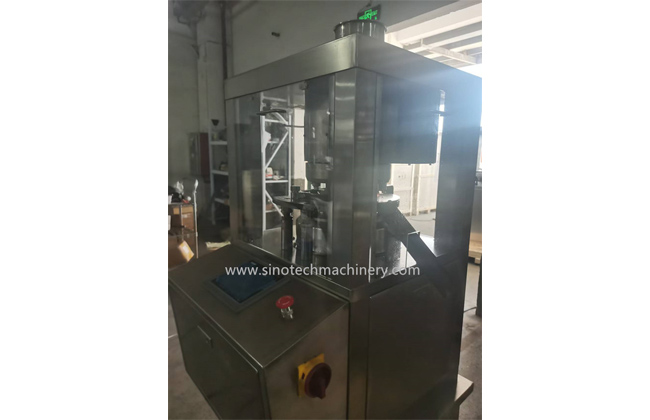

A. Display current main pressure (maximum 60 kN)
B. Display current tablet thickness
C. Display the current filling amount
D. Display the current position of the preload wheel
E. Display current output force (maximum 10 kN)
F. Display current turntable speed
model | ZPS8 | ZPS10 | ZPS16 |
Impulse modulus | 8 | 10 | 16 |
Maximum pre compression pressure (kN) | 10 | ||
Maximum main compression pressure (kN) | 80 | ||
Maximum compression diameter (mm) | 25 | 18 | 13 |
Maximum filling depth (mm) | 16 | ||
Maximum tablet thickness (mm) | 8 | ||
Rotary speed (RPM) | 40 | ||
Production (pieces/hour) | 14400 | 18000 | 28800 |
Motor power (kW) | 3 | ||

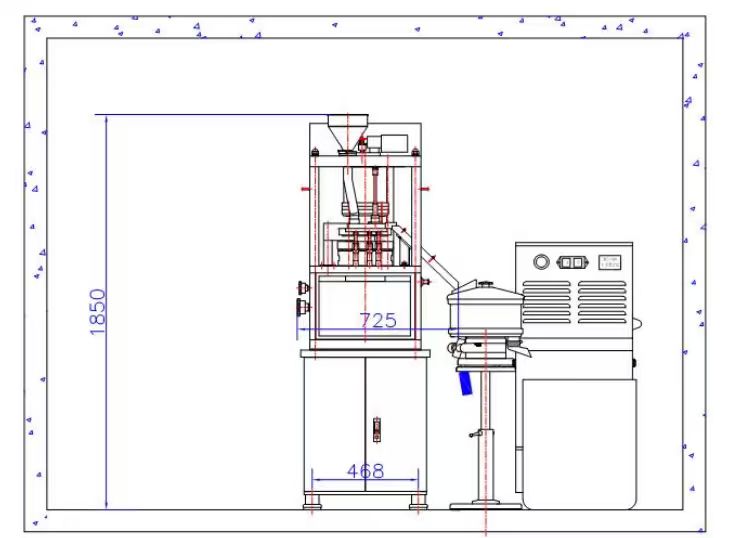

Dimensions (millimeters) | 710 ×700× 1680 | ||
Host weight (kg) | 780 |
Name | Model | Manufactory |
PLC | 6ES7 212-1AB23-0XB8 | Siemens |
Analog module | 6ES7 231-0HC22-0XA8 | Siemens |
Analog module | 6ES7 235-0KD22-0XA8 | Siemens |
Clock battery box | 6ES7 297-1AA20-0XA0 | Siemens |
Touchscreen TP177B PN/DP 5.7'256 colors | 6AV6642 297-0BA01-1AX1 | Siemens |
Frequency converter 380VAC 2.2kW | 6SE6420-2UD22-1BA0 | Siemens |
Inverter panel | 6SE6400-0BP00-0AA0 | Siemens |
Transformer 380V/220AC | JBK3Z-250 | - |
DC power supply | NES-50-24 | Mingwei |
Circuit breaker 3P 10A | 3VU1340-1NK00/3P5-8A | Siemens |
Circuit breaker 2P 6A | 5SJ6206-7CC20 | Siemens |
Main control switch 3P 16A | 3LD2 203-1TL53 | mott |
Emergency stop button (red) | 3SB3201-1CA21 | mott |
motor | Y90L 1-4 | Shanghai Dedong |
Electronic ruler | WDL25-2 | Shanghai Shenyou Electronics |
Displacement amplifier | WY-1 | Our factory |
pressure amplifier | ZPD-23 | Shanghai Shenyou Electronics |
Pressure sensor | BHR-3 | Shanghai Shenyou Electronics |
