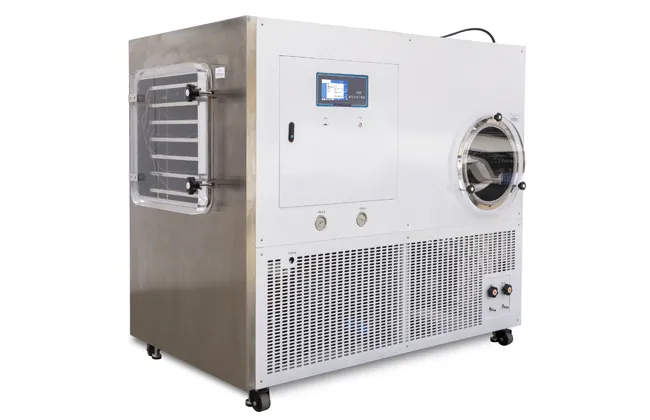

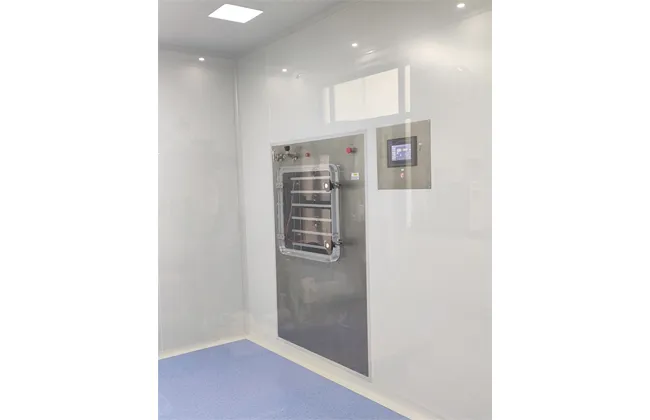

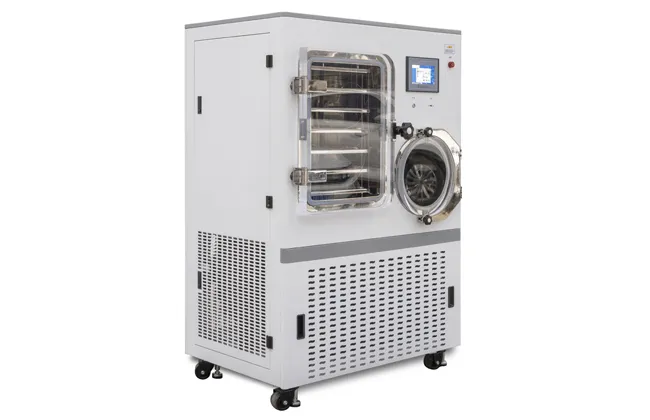

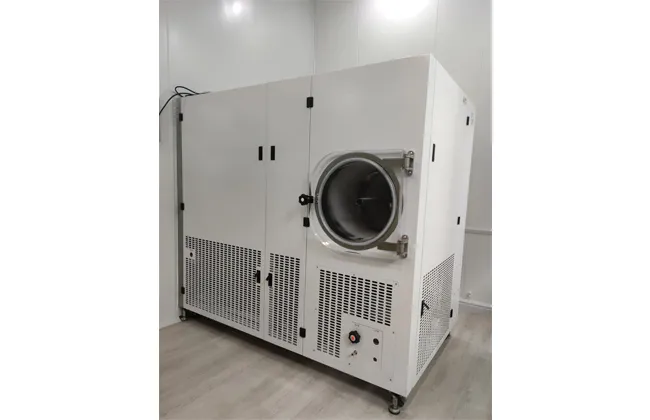

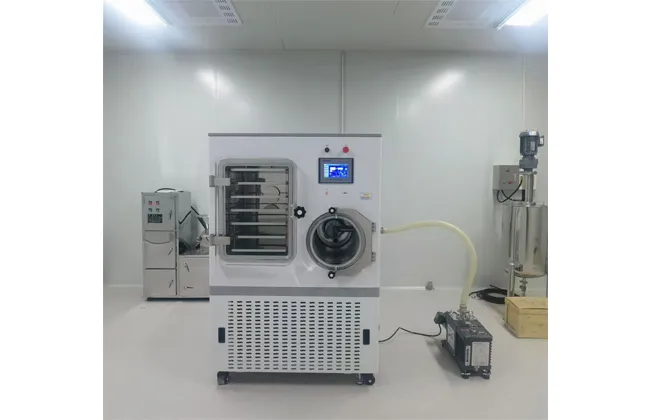

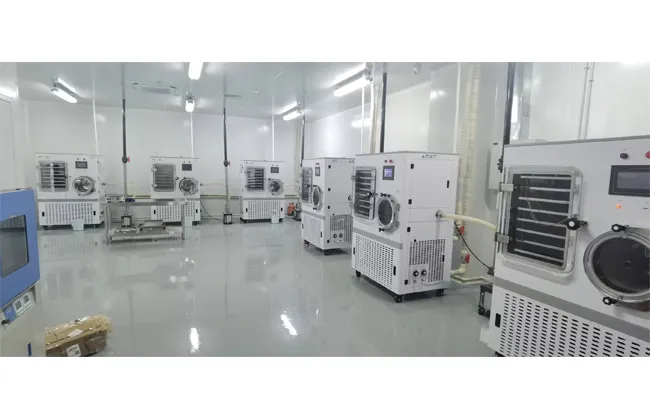

Name: Lyophilizer Freeze Dryer
Brand: Liaoyang Sinotech Technology Development Co., Ltd.

Technical Features

Automated Operation: Pre-freeze-drying is performed in situ, reducing cumbersome operations during the drying process.
Precise Temperature Control: Silicone oil is used as the circulating medium; the temperature error of the partition is ≤±1℃, ensuring uniform drying.
Intelligent Control: Touchscreen operation, PLC control, PID regulation; real-time monitoring of equipment operation, fault alarm function.
Selectable Modes: Four control systems are available: manual freeze-drying mode, manual CIP/SIP mode, automatic freeze-drying mode, and automatic CIP/SIP mode.
Intelligent Storage: Data can be transferred via USB flash drive; with host computer software, freeze-drying curves can be printed and viewed.
Fast and Efficient: The drying chamber and cold trap are isolated by a central valve, ensuring high-quality freeze-dried products with a wide range of applications.
Multifunctional Options:

1. Flexible configuration options (fixed & lifting trays, CIP/SIP, imported & domestic configurations, etc.) provide more economical and cost-effective freeze dryers.

2. A tilting-plate type freeze dryer can be selected, combined with an automatic feeding system and an automatic unloading trolley to automate the freeze-drying process of raw material liquid.

Specifications of Lyophilizer Freeze Dryer

Model	Unit	FD-18F	FD-1F	FD-1	FD-2	FD-3	FD-5	FD-8	FD-10	FD-15	FD-20	FD-25	FD-30	FD-40	FD-50
Nominal area	m²	0.18	0.5	1	2	3	5	7.5	10	15	20	25	30	40	50
Liquid Capacity (15mm thickness)	kg	2	7.5	15	30	45	75	112.5	150	225	300	375	4450	600	750
Effective Shelf Area	m²	0.18	0.54	1.08	2.16	3.24	5.4	7.56	9.72	14.4	19.8	24.75	29.7	42	51
Shelf Dimensions(LxW)	mm	Ф240	450×300	600×450	900×600	900×600	1200×900	1200×900	1200×900	500×1200	1500×1200	1500×1500	1800×1500	2000×1500	2000×1500
Number of Shelf	pcS	4	4+1	4+1	4+1	6+1	5+1	7+1	9+1	8+1	12+1	11+1	11+1	14+1	17+1
Shelf Spacing	mm	70	50~100(customize)(Based on the customer's product)
Maximum capture ice capacity	kg	6	10	20	40	60	100	150	200	300	400	500	600	800	1000
Shelf Temperature Range	℃	-55~+80
Shelf Temperatre Control Accuracy	℃	±1
Lowest Cold Trap Temperature	℃	-75
Ultimate Vacuum	Pa	≤1
(15≤P≤2bar,T≤32℃) Cooling Water Consumption	T/hr		5	8	10	14	18	22	28	32	40	42	45	50	70
(P≥3bar,T≥70℃) Washing Water Consumption	L/min		80	80	120	150	200	220	260	280	300	320	350	400	420
(2≤P≤3bar) Sterilization Steam Consumption	kg/hr		40	40	80	120	160	200	250	300	320	350	400	500	550
(2≤P≤3bar) Defrosting Steam Consumption	kg/hr		10	10	20	30	50	75	100	120	150	160	180	200	250
(6≤P≤8bar) Compressed Air Consumption	L/min		40	50	50	50	50	80	80	80	100	100	100	120	120
Installed Power	kw	1.4	9	15	18	20	36	46	65	85	115	130	145	200	235
Overall Dmensions (L×W×H)	m	0.63×0.58×0.97	2.2×1×2.3	2.6×1.2×2.6	4×1.6×2.8	4.2×1.6×3..5	5.5×2.1×3.2	5.5×2.1×3.5	5.8×2.1×3.8	6.5×2.3×3.6	7×2.35×4	7.5×2.8×4.2	8×2.8×4.5	9.5×2.9×5.4	9.5×2.9×6
Equipment Weight	T	0.105	1.2	1.8	2.5	3.6	5	7.5	10.5	12.5	14	17	19.5	24.5	28
