Alu Alu suppository production line

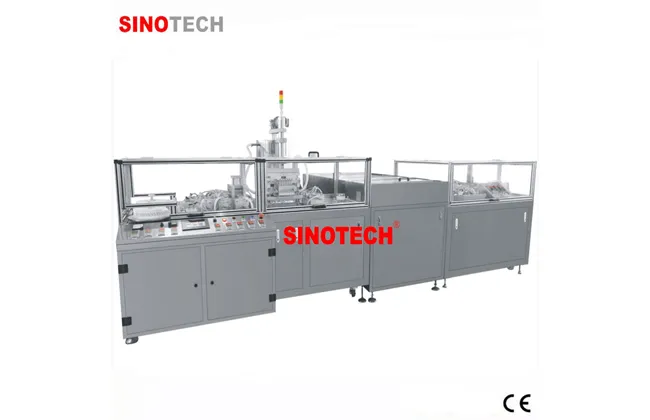

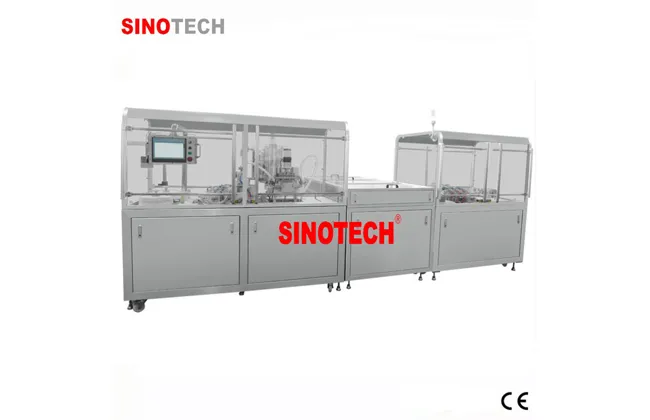

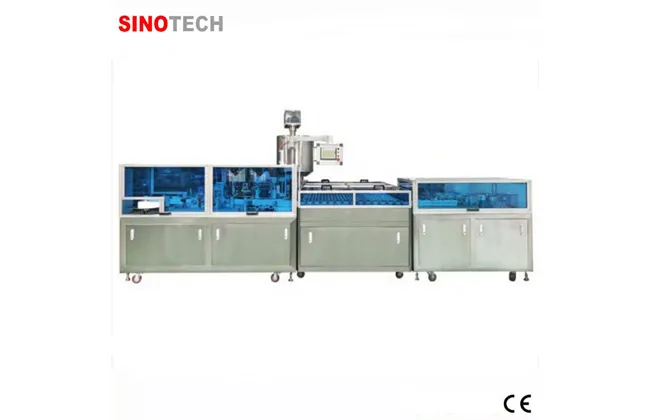

SZS-9A High Speed Suppository Filling and Sealing Production Line with output 8000-12000PCS/h which is made up of high speed suppository belt forming system, filling machine, cooling machine and sealing machine. PLC programmable control and human-computer interface operation the unit is simple to operate and with high automaticity.

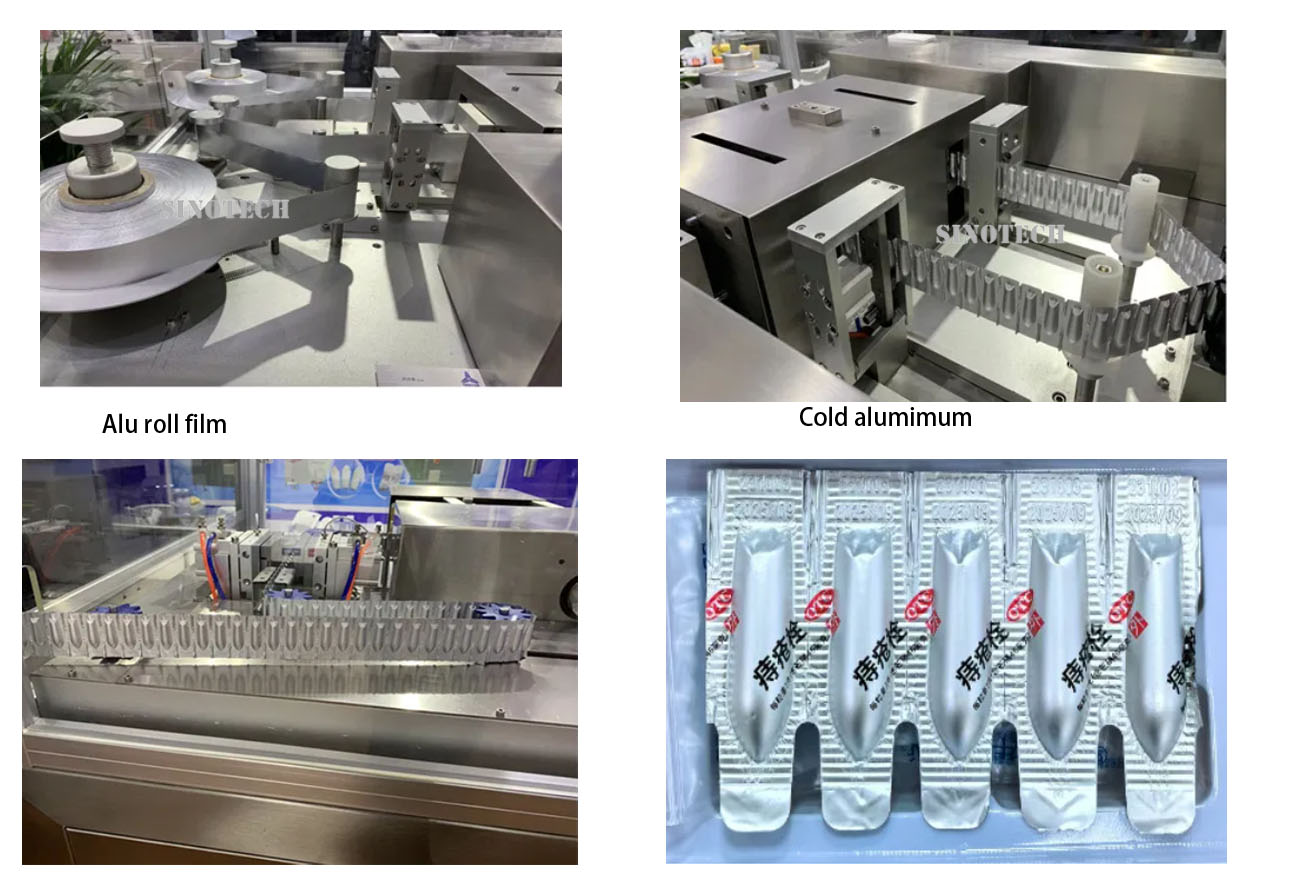

All the processes can be made automatically including shell-making, infusing, cooling, shaping, and sealing of the suppositories. It is also of advantages of not infusing in the collapse and automatic rejection of it, automatic colour code deviation rectification, and detecting the infusion quantity. The unit is controlled by PLC procedure with human-machine interface operation and it is the highest automatic suppository equipment in the country today.

Technology Characteristics:

1. The adoption of PLC programmable control and human-computer interface operation the unit is simple to operate and with high automaticity.
2. With the function of automatic deviation rectification the characters' position can be controlled as you like. The suppositories have the neat and good appearance.
3. With the function of detecting collapse, infused quantity, the liquid level of the charging basket.

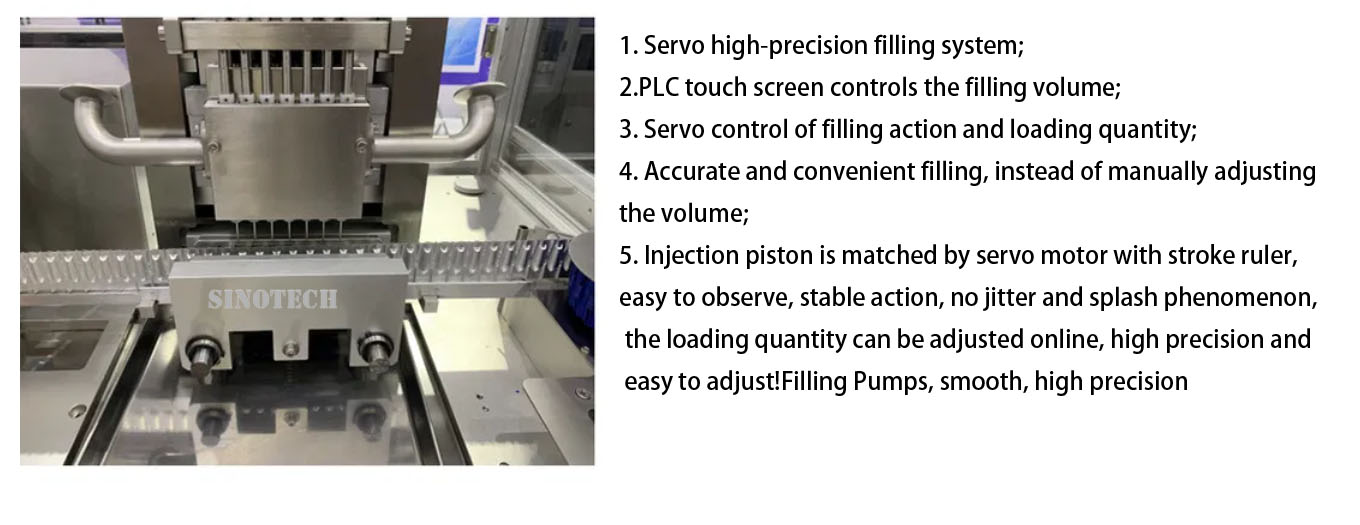

4. The infusion is adopted the servo motor system exactly adjusting the infusing quantity with menu-memory-function and simple to change the specifications.
5. The adoption of insert-type straight line infusion mechanism has the advantages of correct location, no drop medicine, and no adhesion phenomenon.
6. Cooling protection shut down, the band comes out continuously without end breaking and low waste rate.
7. Not infusing the wastes, auto-drill, and automatic rejection of them at the end of the Machine.
8. Interlock protection, intelligent alarm, and safety assurance.


Commodity

Automatic Aluminum Foil Suppository Production Line

Model

SJ-7Z-A

Output

8000-10000pcs/h

single dosage

1-3g

Dosage allowed

<±2%

Packaging Film

aluminum foil\PE  thick:0.8-0.12mm

Stirring tank capacity

70L

Air pressure

≥0.6Mpa

Air consumption/min

0.9m3/min

Water consumption/h

50kg (Recycling)

Working voltage

380V 3P

total power

7.5KW

Adopt forming shapes

Bullet, torpedo

Machine Weight

2500kg

Adapt Material

Synthesis of fatty acid glycerine, glycerine gelatin, polyethylene glycol, etc

Each distance of suppository

17.4mm
