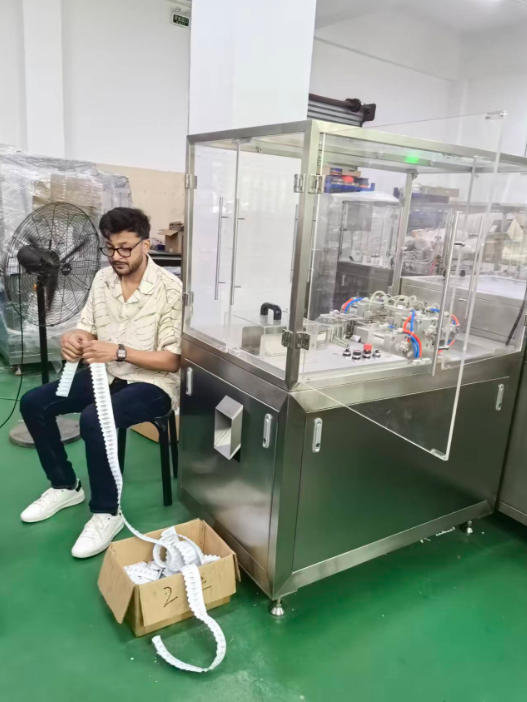

High-Speed and Fully Automated Automatic Making Equipment Suppository Filling and Sealing Machine

Main application:

The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic suppository production line source of power.  This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film), eliminating unqualified products etc.

Working Principle:

The rolled plastic sheet material(PVC or PVC/PE) is pressed positively to blow and make a statue to take shap, and enter into filling procedure automatically, stirred equally drug fluid to nul nutshell automatically through high precise dosing pump, and is sheard into multi-stripiso-segment.Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversation from fluid to solid. At last, it will be produced to end product suppository by mending form, sealing, beating batch number and shearing working procedure.

Equipment advantage:

1.PLC testing function

through on-line monitoring function of PLC operation breakdown self check alarm and show the cause of the problem in synchronization easy operation personnel to remove the faults.

2.Filling with static system in part

Due to trace pharmaceuticals filled in close to bolt shells in the area will flowing under the action of electrostatic force along the empty shell to climb a fraction of a high wall could reach the bolts sealing parts,so will influence the quality sealing behind.

3.Mixing barrel speed regulation system

Due to the different drug matrix series of different fixed mixing effect may be unable to make drugs before filling in the mix of finished  product to affect bolt drug content.

4.The cooling speed regulating system

Due to the different drug ingredients may need different cooling speed;The cooling speed too slow and low will cause the whole machine production efficiency down;The cooling speed is high may lead to drug because suddenly drop in temperature and spilt so the cooling speed can be adjusted to.

5.Shear grain number can adjustable system

According to customer demand for products such as 4/5/6/7 set grain number.The machine can produce PVC/PE production.
