The SHSR-180HFull Automatic Softgel Encapsulation Production Line is specially design for the large scale production.The encapsulation machine is the most advanced simple construction design in the market,it is Zero-Repair during the production and the operation for the workers and equipment simple design.
* Film film roller/Net gelatin pulling device/Encapsulation running all above units individual motor control.
* None-Lubrication Oil Encapsulation system
* Gelatin film cooling:Special water cooling system design
* Unique side-cut air blowing drying system
* Oil with powder softgel high performance
*Zero-Repair during production.

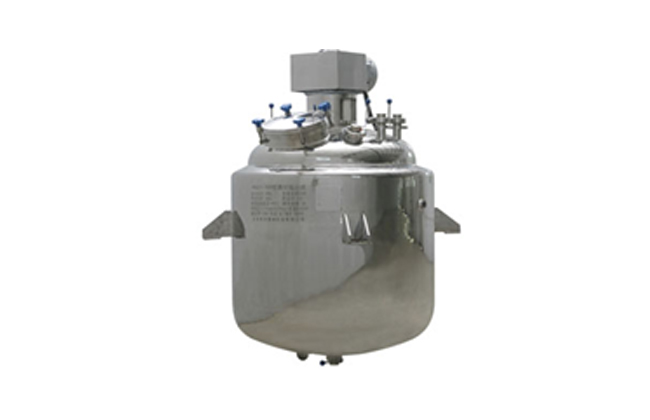

Stainless Steel Gelatin Melting Vacuum Stirring Tank (Model SHSZJ-400) | |
| Tech Data： Inner effective Capacity：:400 L Working Temperature：Room temp~＋95℃ Stirring Motor Power：4kw AC 380V Stirring Speed：35r/min Tank Inside Allowed Pressure：-0.09~0.3MPa External Dimension：Φ1000×1650mm Weight：450kg |
Stainless Steel Material Preparation Tank (Model SPY-400) | |
| Tech Data： Inner Effective Capacity：400 L Working Temperature：Room temp~＋95℃ Power：1.5kw AC 380V Stirring Speed：35r/min Tank Inside Allowed Pressure：-0.09~0MPa External Dimension：Φ800×1650mm Weight：260kg |
Stainless Steel Hot Water Heating Tank (Model SHSJHQ-350) | |
| Tech Data： Water Supply：2000 kg/h Use Temperature：100℃ Steam Usage：130kg/h Electric Heating Usage：18KW External Dimension：Φ900mm×2200 mm |
Colloid mill (Model SJM-80(J)) | |
| Tech Data： Fineness of Emulsification (μm): 2~50 (single cycle or multi-cycle) Output (T/H): 0.05～0.7 (Changes as per material properties) Power: 380V 4KW Type of motor: Y112M-2-B5(Dedicated) Revolving speed(r/min):2890 Rotor diameter (mm):80 External dimension: Φ450×113 Weight :190kg |
Stainless Steel Thermal Gelatin Stock Tank (Model SHSBZ-200) | |
| Tech Data： Effective Capacity in the Barrel：200L Effective Capacity of the Water Jacket: 60L Heating Power：1.5kw AC220V Operation Temperature：Room temperature～+95℃ Internal Permissible Pressure：0～0.06MPa Equipment Weight：145kg External Size：Φ750× 1200mm |
Stainless Steel Vacuum Cooling Pot (Model SHSLNQ-60) | |
| Tech Data： Cooling Area：0.7 m3 Condensing Capacity：80L Vacuum Degree：0.09 Mpa External Dimension：450mm×2000 mm |
Steam-water Separator (Model SHSFLQ-160) | |
| Tech Data：
External Dimension：500mm×500 mm×700mm |
Water Circulation Type Vacuum Pump (Model S2BV5110) | |
| Tech Data： Power：4kw AC 380V Pressure：-0.01Mpa External Dimension：442×200×232mm |
Hot Water Pump (Model SIGR40-100) | |
| Tech Data： Volume of Flow：6 m3/h Power：0.75kw AC 380V Pressure：0.4Mpa External Dimension：150×260×390mm |
Stainless Steel Buffer Pot (Model SHSHCQ-30t) | |
| Tech Data： External Dimension：Φ300mm×1045mm |
Softgel Encapsulation Machine (Model SHSR-180H) | |
| Tech Data： Main machine Model HSR-180H Roller Die Dimension：Φ103x180 mm Roller Die Pressure：0.1-0.5MPa Roller Die Speed：0-6rpm Stepless Speed Adjust Material Feeding Quantity：10 X (0-2)mL Filling Quantity Precision： Power：AC380V 50Hz 7kW External Size：1680×750×1800mm Weight：1200kg
Stainless Steel Conveyor Power:220V,0.37KW Wind pressure:900pa Wind quantity:2000 m3/h
Compressed air unit SMC pressure reducing valve SMC precision pressure regulator valve Pressure gauge.
Micro-lubricating System Oil box,adjustable flow control valve Gelatin Film Spreading Speater Box(0.01mm) PID temperature control Temperature sensor(0.1℃)
Cooling water machine Power: AC220V 50Hz 1.5kW; Cooling Liquid Quantity: 55L Cold {Producing} Medium: R22 Cooling Liquid Type: -40℃ Anti-Icing Fluid Connecting Part :G1/2“ External Size: 650×360×850mm Weight: 70kg |
Tumble Dryer (Model SHSGZ-3) | |
| Tech Data For One Section：
Size of rotating cage: Φ610×960mm Rotation rate of rotating cage: 18rpm Power: AC380V 50Hz 2.2kw Wound rate of fan: 3000m3/h Weight: 200kg External size: 1040×760×1180mm |
Tray Dryer with the trolley | |
|
Tech Data：
Tray Size：530 x360 x55mm Tray material：Medical Grade PE
40 trays/trolley :All the materials of the tray and trolley is accordance with the requirements of GMP. |
Light inspection table | |
| Under the guaranteed enough light lighting, to select unqualified shape and unqualifed sealing of capsules |
