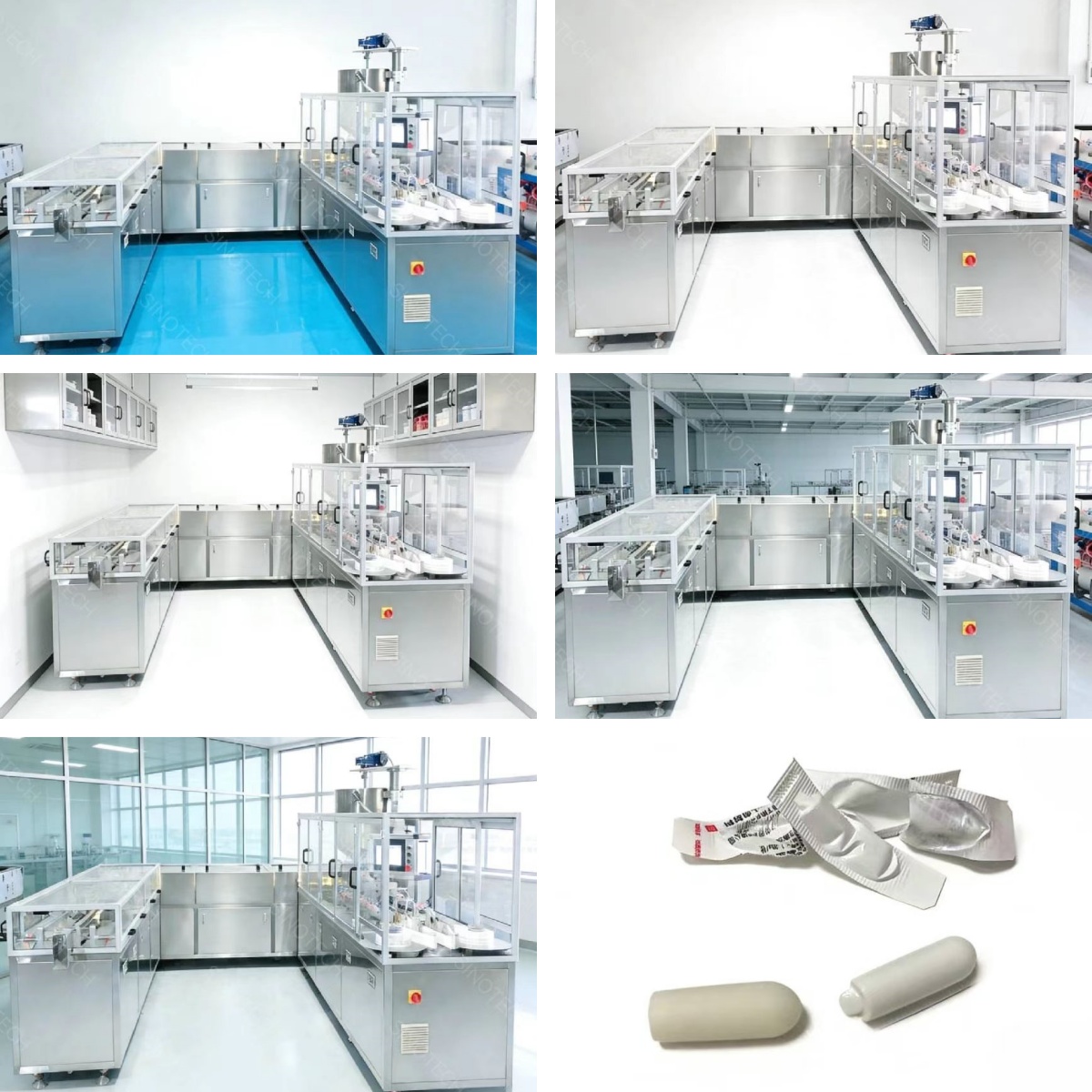

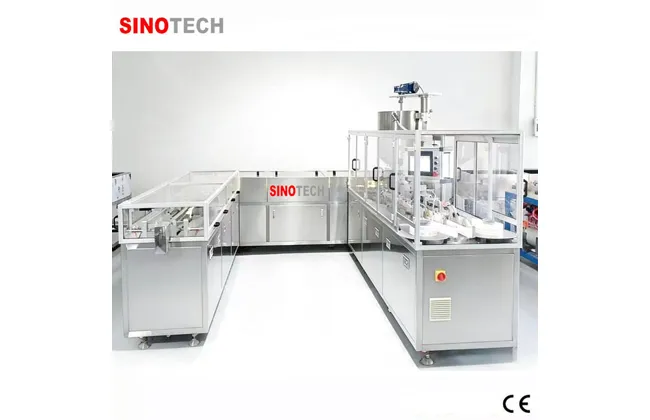

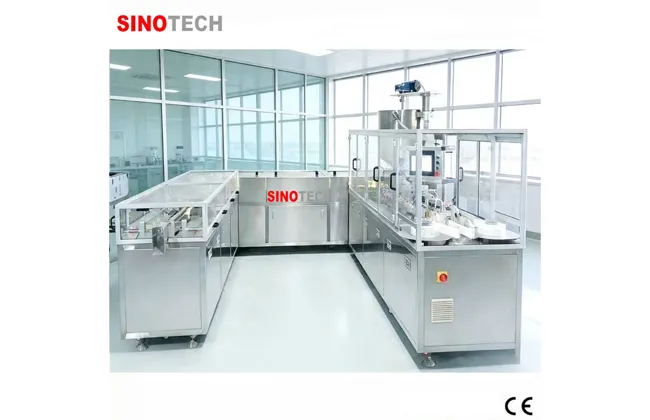

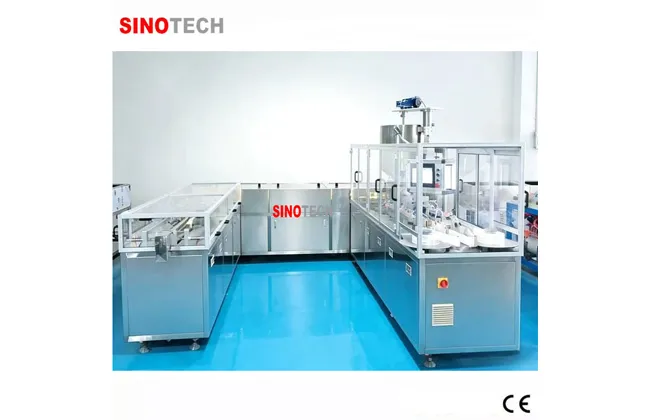

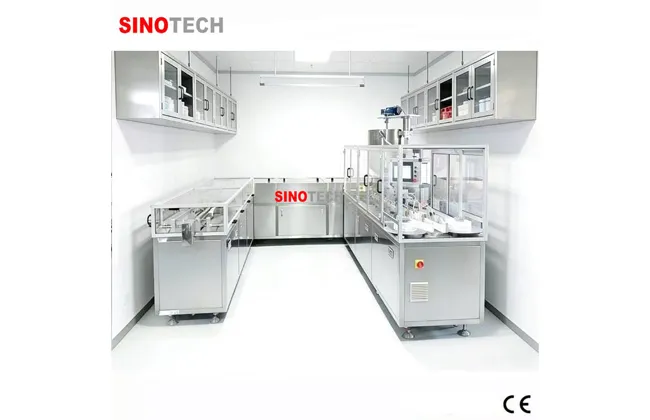

15 Filling Heads Fully Automatic Suppository Filling Sealing Production Line

Performance

SINOTECH-15S  automatic  suppository  filling  production  line  has  a  stable  and  efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 18,000-23,000 grain/hour.

Process flow

It will be rolled into the forming area by the clamping mechanism. The mold will be heated by the preheating mold, the mold, the mold, the blow mold and the bubble forming.

The triangle knife will be cutting suppository top edge (cutting edge).

Filling

And one-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric heating insulation system, the top is equipped with a uniform mixing machine in order to make drugs, drug by high precision in VAT filling pump into the filling head, a drug through the other end of the cycle to rest after filling material barrel filling again next time.

Cooling design

The suppository of the whole drainage is entered into the cooling box, and the cooling box is equipped with a cold water unit. The cooling air cools the suppository in the cooling box through the condenser in the cooling box.

Shearing

After being cooled, the solid suppository enters the sealing zone: preheating mold (preheating), sealing mould (seal), marking mould (batch number), hob (top), counting shear.

Function description

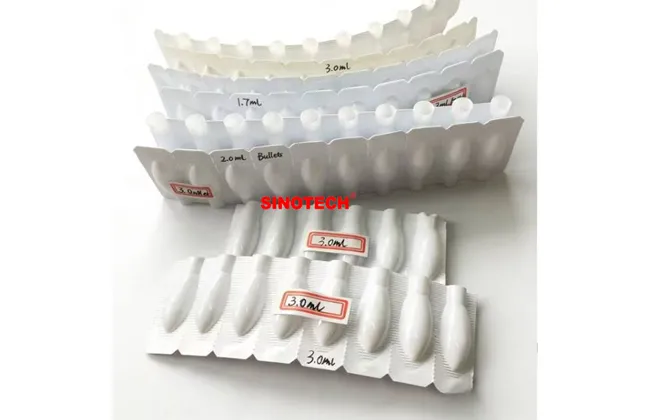

1 SINOTECH-15S Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications)

2 The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.

3 The temperature sensor and  microcomputer  control system  are  used  to  realize  high precision thermostatic control.

4  The  liquid  storage  tank  is  made  of  316L  stainless  steel,  with  proper  volume,  heat preservation and heating function, and accurate temperature control; The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can

be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.

5 The  insertion  type  linear  perfusion  mechanism  can  be  used  to  locate  accurate,  not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is plus or minus 2%.

6 Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.

7 Continuous strip, continuous sealing, sealing process batch number self-printing; The sealing seal should be well sealed, with neat appearance and good value of not less than 98%.

8 Simple and reasonable design, convenient operation and maintenance.

9 SINOTECH-7S automatic suppository filling production line is welded flat, with no edge, slag and splash.

10 The whole machine is treated with reliable rust. The surface of the equipment is 304 stainless steel. It is smooth and easy to clean.

11 Components, accessories and motors and so on should adopt domestic and foreign premium brands.

12 Ensure the appearance of the equipment and smooth operation.

Technical Parameter

Configuration list

Electric-control parts configuration list:
